Ventilation protection
Captures airborne particles before they continue through the ventilation system.
MOBILITY FILTRATION
Panel Filters
From HVAC systems to railway ventilation, airborne dust needs a filter that fits the installation. Start with your airflow, housing and media requirement.
Discuss your requirementRelated filtration products
Explore more filters for your application.PARK FILTRATION SOLUTIONS

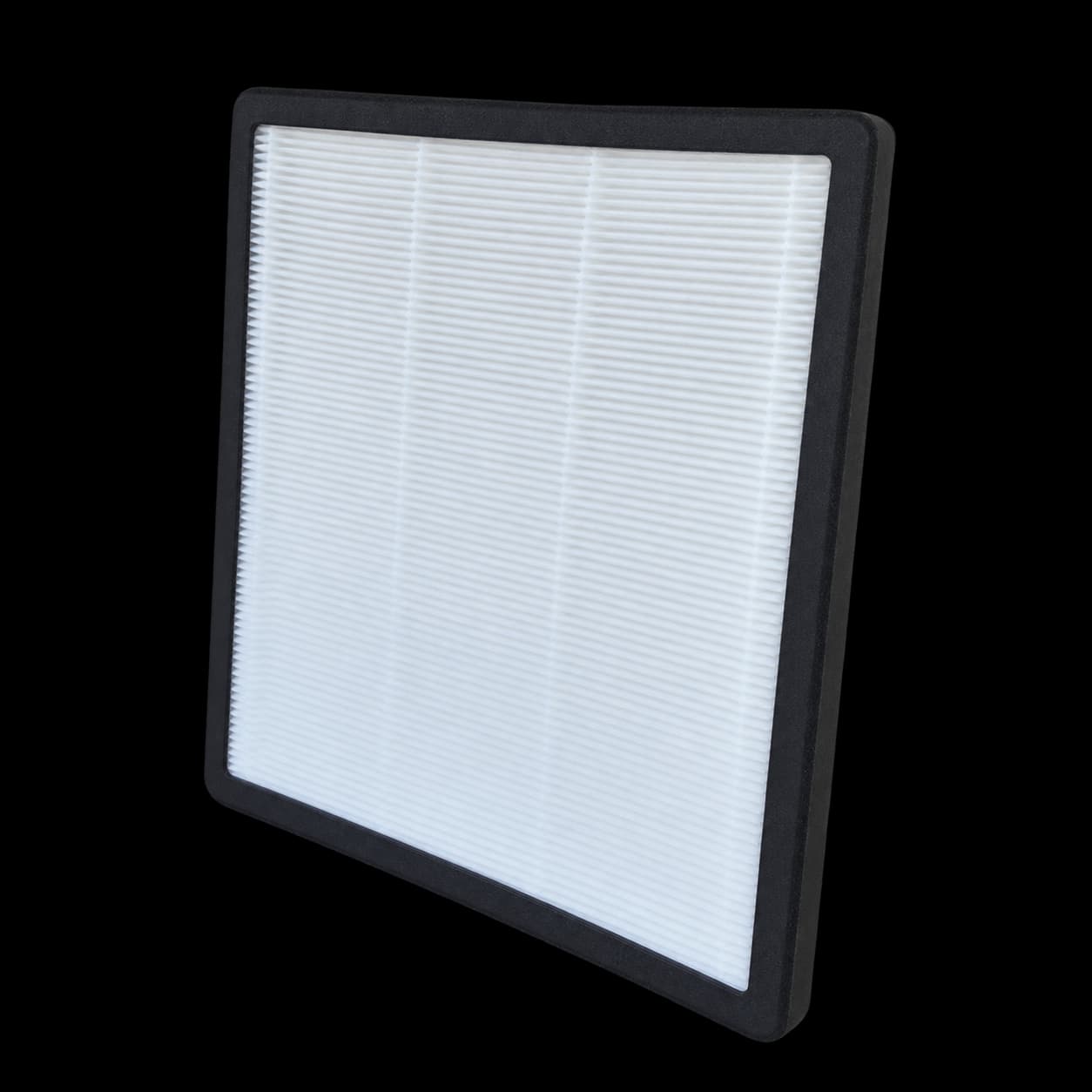

HEPA Filters
Need fine particle filtration? Explore PARK HEPA filter options for controlled-air systems. Discuss the required grade, airflow, dimensions and seal.
Explore product
What is this filter?
A panel filter is a framed air filter made with pleated synthetic nonwoven media. Also known as pleated filter, cassette filter, frame filter, minipleat filter and filter cell. These describe catalogue formats; the exact assembly should be checked against your installation.
How it works
Air passes through the media while airborne particles are retained. Pleats place more media into a compact framed area. In an HVAC or railway ventilation system, the frame and fit help direct the airflow through the filter rather than around it.
A frame for your installation
Metal and plastic options, together with standard or special sizes, support different housing requirements.
A range of media grades
The catalogue lists multiple coarse and fine-particle options so the filter can be specified around the application.
PRODUCT OVERVIEW
Discuss this filter Panel Filters
Capture dust in HVAC and ventilation systems with PARK pleated panel filters. Compare synthetic media, frame options and sizes for your installation.
Material
Synthetic nonwoven media
Features & options
- Standard and custom sizes
- Metal or plastic frame options
- Temperature resistance up to 70°C
PRODUCT SPECIFICATIONS
Technical options
- Sizes
- Standard sizes and special sizes on request
- Catalogue ISO 16890 grades
- ISO Coarse 75%; ePM10 55% / 70%; ePM2.5 65%; ePM1 70% / 80%
- Legacy catalogue grades
- G4, M5, M6, F7, F8, F9 (EN 779 catalogue references)
- Temperature resistance
- 70 degrees C
- Frame options
- Metal or plastic
Ranges are listed in the supplied PARK product catalogue and describe available options, rather than a single filter specification. Confirm the selected grade, dimensions, test report and operating conditions before ordering. EN 779 references are retained as catalogue terminology.
DESIGNED FOR YOUR APPLICATION
Where it works
Final media grade, dimensions and performance specifications are selected for the application. For liquids, confirm chemical compatibility, temperature, flow rate and the required particle rating. For air systems, confirm airflow, pressure drop and installation fit.
- Measure the overall frame dimensions and depth, not only the visible media.
- Share the required airflow, filter class and acceptable pressure drop.
- Confirm operating temperature against the catalogue value of 70°C.
- Confirm the frame, seal and minipleat or other construction required by the housing.
Before you enquire
Is a panel filter only for railway coaches?
No. Our range includes panel filters in railway, manufacturing, heavy industry and living ranges. It lists HVAC, cleanrooms, offices, schools, hospitals and other indoor ventilation applications.
Can I request a custom size?
The catalogue lists standard or customer-specific formats. Share the filter dimensions and system details to confirm availability.
What information should I include in my enquiry?
Include the application, existing filter dimensions, required media or grade, operating conditions and estimated quantity. Attach an existing drawing or specification when available.
